50R/Min 700kg/H 800kg/H απορρίπτουν το διπλό καταστροφέα εγγράφων άξονων για το μέταλλο
Λεπτομέρειες:
| Τόπος καταγωγής: | Κίνα |
| Μάρκα: | TMS |
| Πιστοποίηση: | ISO, CO, CE |
| Αριθμό μοντέλου: | Tms-400 |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 1 σύνολο |
|---|---|
| Τιμή: | Negotiated |
| Συσκευασία λεπτομέρειες: | Ξύλινη περίπτωση πτυχών με 4200*2300*2700 χιλ. ή το πλήρες εμπορευματοκιβώτιο |
| Χρόνος παράδοσης: | 20 ημέρες εργασίας |
| Όροι πληρωμής: | L/C, T/T, Western Union, MoneyGram |
| Δυνατότητα προσφοράς: | 20 σύνολα το μήνα |
|
Λεπτομερής ενημέρωση |
|||
| Όνομα: | Καταστροφέας εγγράφων μετάλλων | Λειτουργία: | Απορρίματα αποκομμάτων |
|---|---|---|---|
| Διάσταση: | 1650*900*1600 | Μηχανή: | 18.5kw |
| Ικανότητα: | 700-800kg/h | Περιστραφείτε την ταχύτητα: | 50 r/min |
| Βάρος: | 700kg | Τάση: | 380V/50HZ |
| Υψηλό φως: | 50R/Min διπλός καταστροφέας εγγράφων άξονων,700kg/H διπλός καταστροφέας εγγράφων άξονων,800kg/H διπλός καταστροφέας εγγράφων άξονων |
||
Περιγραφή προϊόντων

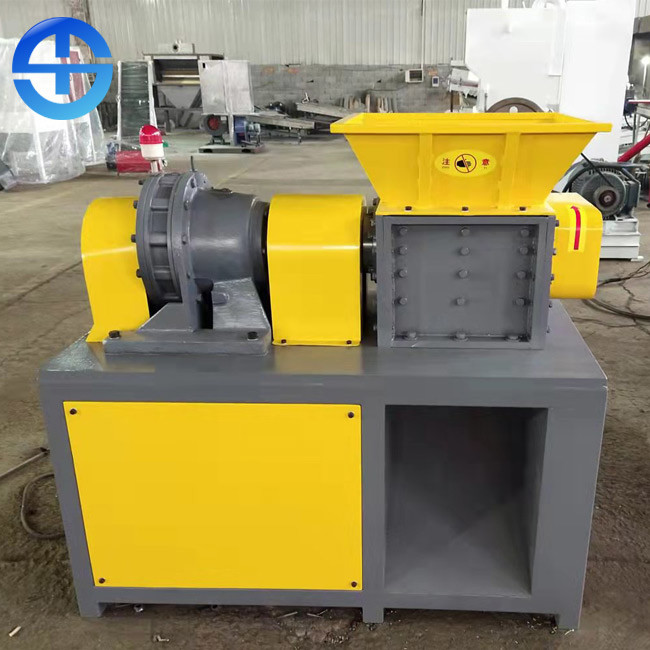

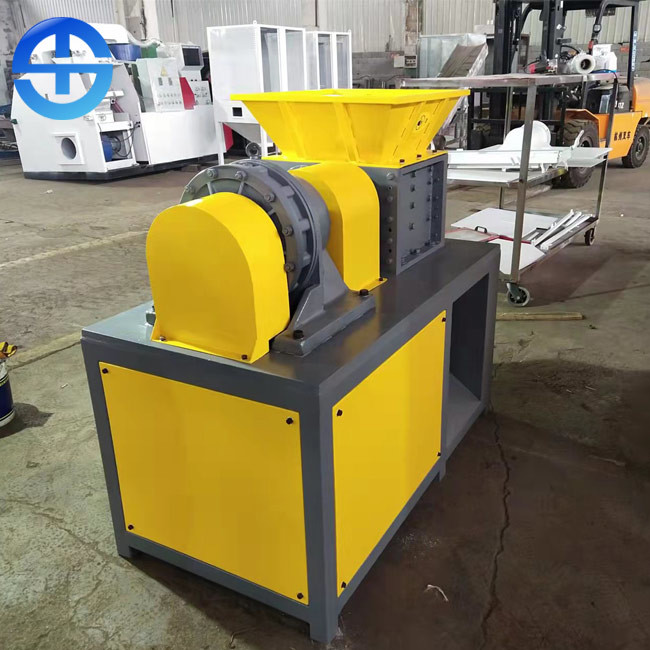

50 R/Min 700kg/H 800kg/H Scrap Dual Shaft Metal Shredder
Introduction of metal shredder
Dual shaft shredder can meet the requirements of waste recycling in various industries, and is suitable for shredding thicker and refractory materials, such as electronic waste, plastics, metals, wood, waste rubber, packaging barrels, pallets, etc. There are many kinds of recyclable materials. The torn materials can be directly recycled or further refined according to demand. It is suitable for industrial waste recycling, medical treatment recycling, electronic manufacturing, pallet manufacturing, wood processing, domestic waste recycling, plastic recycling, tire recycling, paper making and other industries. This series of double shaft crusher has the characteristics of low speed, high torque and low noise. It adopts PLC control system and can be automatically controlled. It has the functions of starting, stopping, reversing and overloading automatic reversing control.
Specification of metal shredder
| Model | TMS-400 |
| Motor | 18.5kw |
| Voltage | 380v/50hz |
| Capacity | 700-800kg/h |
| Rotate speed | 50 r/min |
| Dimension | 1650*900*1600 mm |
| Weight | 700 kg |
Features of metal shredder
(1). The machine is reasonably designed and welded with high-quality steel.
(2). Fastening with high strength screw, solid structure, durable.
(3). The design of the main engine is exquisite, and the separation design is adopted for the fragments to make the output higher.
(4). The processed fragments are uniform and wear-and-tear is small. Various sieves can be replaced at the same time to meet different needs.
(5). Tools of different materials are equipped at the same time, so that they can be flexibly adjusted for different materials. They can be grinded after bluntness, used many times, and have long service life.
(6). The machine has the advantages of advanced structure, beautiful appearance, simple operation, stable operation, low investment and high efficiency.
(7). Equipped with large belt pulley to increase the inertia of crusher, it can save energy and strong crushing.
Instructions for use and maintenance of metal shredder
1. Before commissioning, strictly check whether the installation of each part of the machine meets the requirements and whether the screws and bolts are loose. At the same time, check the rotation direction. It is strictly prohibited to crush flammable and explosive articles to avoid accidents.
2. Uniform blanking shall be maintained during production to ensure crushing quality and normal production. At the same time, motor overload is strictly prohibited to ensure normal operation of the machine.
3. In addition to frequently checking the fastening and looseness of various parts, attention should also be paid to checking the wear of vulnerable parts. If the wear is serious, it should be replaced in time to avoid damaging the main parts. Fire prevention measures shall be taken.
4. Due to the high speed, in addition to the correct and firm installation, good lubrication shall be maintained to maintain the normal operation of the machine. Generally, it is normal that the bearing temperature does not exceed 70 ℃. Add butter and molybdenum disulfide to the main engine bearing once a week, and the effect of high-speed butter is better.
Application of metal shredder
The items that can be torn up by metal shredding machine are
(1). Wood processing industry: wooden pallets, branches, seats, wood, roots; Wisconsin environmental protection.
(2). Plastic products industry: mixed plastics, plastic buckets, rubber blocks, nozzle materials, garbage cans.
(3). Waste tire industry: automobile tires, tires with rough steel wire removed, rubber.
(4). Metal recovery industry: scrap iron and steel, lead, aluminum alloy, copper scrap.
(5). Electronic waste industry: electronic appliances, plugs, transformers, air conditioners, induction cookers, television.
